Hydraulic Claw Activity

Design and build a hydraulic claw that works just like the games in an arcade. Move the
upper cylinder and watch your claw open and close below. We have documents to get you
started, but the final claw design up to you. Can you design a claw to pick up specific objects

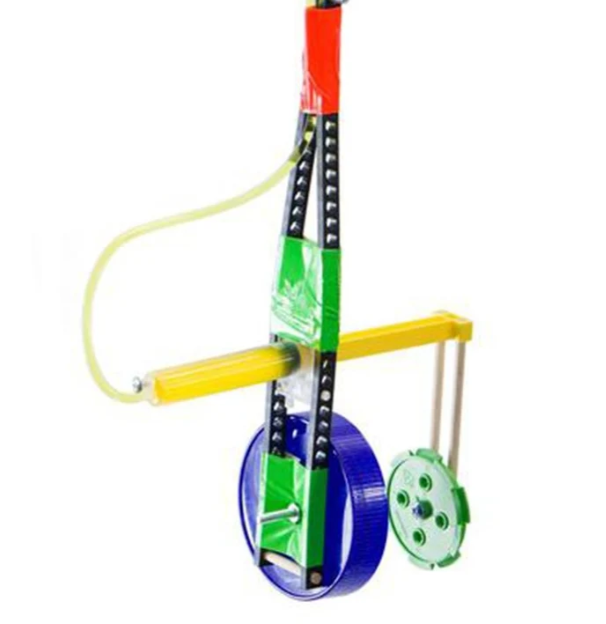

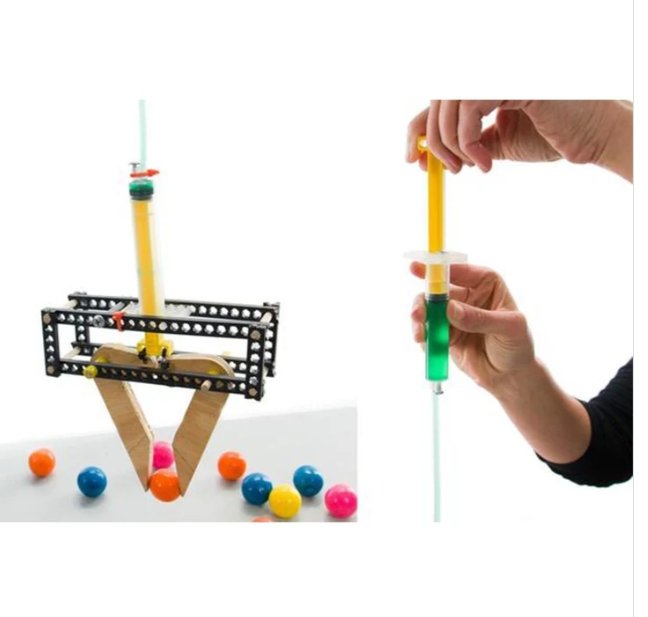

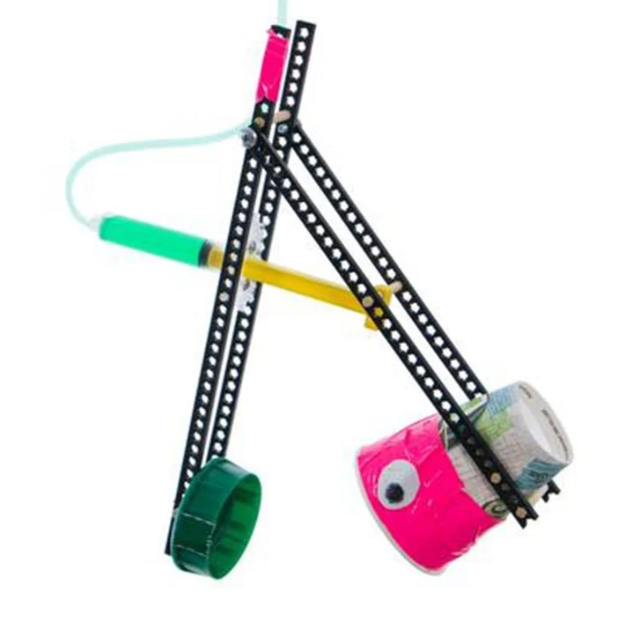

(worms, marshmallows, balls)? Take a look at the photos above for ideas and inspiration.

What comes with Hydraulic Claw?

4x Connector Strips
1x Slide Stop (70 mm)
8x Screws (#10 25 mm)
4x Nuts (#10)
2x Cylinder Screws
4x Perpendicular Blocks
2x Cylinders (4.5 ml)
1x Tubing (380 mm)
4x Zip Ties
2x Dowels (150 mm)
4x Dowels (75 mm)
